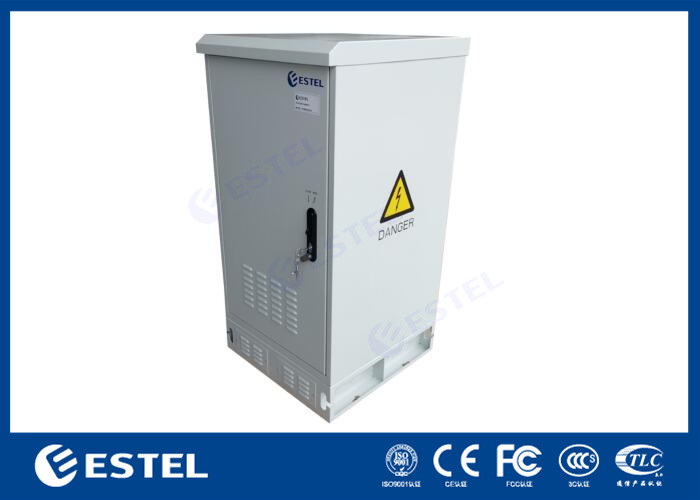

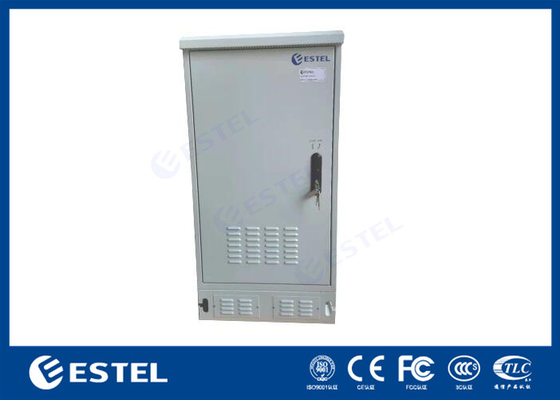

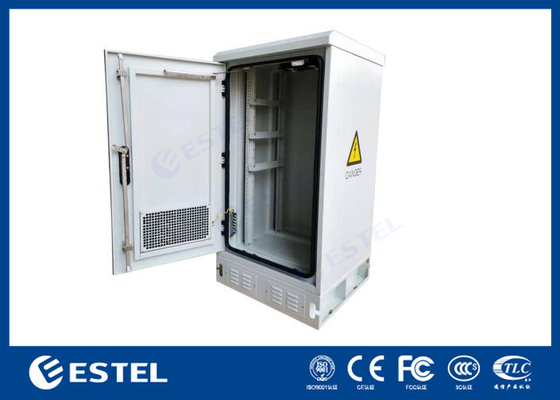

20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System
รายละเอียดสินค้า:
| สถานที่กำเนิด: | เชียงใหม่, จีน |
| ชื่อแบรนด์: | ESTEL |
| ได้รับการรับรอง: | IP55 |
| หมายเลขรุ่น: | ET6060120A-20U |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 1 บาท |
|---|---|
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | กล่องไม้พร้อมพาเลท |
| เวลาการส่งมอบ: | 35-45 วัน |
| เงื่อนไขการชำระเงิน: | T/T, Western Union |
| สามารถในการผลิต: | 3000 |
|
ข้อมูลรายละเอียด |
|||
| คูลลิ่ง: | การระบายอากาศตามธรรมชาติ | พื้นที่ผู้ใช้: | 20U |
|---|---|---|---|
| เซ็นเซอร์: | เซ็นเซอร์ประตู (ตัวเลือก) | ประตู: | ประตูหน้าบานหนึ่ง |
| บานพับ: | แขวนภายใน | ล็อค: | ล็อคสามจุดป้องกันการโจรกรรม |
| เน้น: | การอากาศธรรมชาติ,20U ตู้ติดพื้นกลางแจ้ง,ล็อคป้องกันการขโมย |
||
รายละเอียดสินค้า
20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System
20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System Application:
The outdoor cabinet can protect customer’s equipments from damage and extreme weather conditions.
The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments, power system and batteries.
It can be widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System Technical Parameters:
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET6060120A-20U |
| Protection Level | IP55 | |
| External Dimension | H1200mm×W600mm×D600mm | |
| Internal Space | 19 inch 20U. | |
| Material | Galvanized steel, single wall without insulation. Wall thickness: 1.2mm. | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Door | One front door | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Others | Door sensor, LED light with switch | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System Features:
● High protection grade: IP55
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Cooling can add Fans or air conditioners, installed on cabinet, with filter, convenient for maintenance, cleaning and replacement
Cabinet Diagram:
FAQ
Q1: Are you a manufacturer?
AZE: Yes, we are a experienced manufacturer- professional customer support team, experienced R & D team and efficient production lines.
Q2: Do you have any MOQ limit for server rack/outdoor cabinet ?
AZE: 1pc for sample checking is available.
Q3: Can I get sample order?
AZE: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize products based on requirements?
AZE: Yes, we can provide OEM & ODM services.
Q5: How long is the product warranty ?
AZE: We guarantee all our products 12 months warranty without artificial damage
Q6: How do you ship the goods and how long it will take?
AZE: We will use UPS, FedEx, DHL or air freight for sample order, it will arrived within 7-14 days.
For the bulk order with container sea shippment , the time various for different shipping line
Q7: Can i visit your factory?
AZE: Welcome to visit us, please talk with your account manager to arrange your schedule.
Q8: What is your payment terms?
AZE: 50% T/T in advance, 50% balance before shipping.
